• A-Style
  - Home Cloud
  - HDMI-In
• Gaming Armor
  CPU Power
  - Hi-Density Power Connector
  - Dual-Stack MOSFET (DSM)
  - Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP and MLCC)
  VGA Card
  - 15μ Gold Finger in VGA PCIe Slot (PCIE2)
  Internet
  - Intel^® LAN
  Cooling
  - 2oz copper PCB
  - Heat Pipe Design
  Audio
  - Creative Sound Core3D
• CPU
  - Supports New 4^th and 4^th Generation Intel^® Xeon^® / Core™ i7 / i5 / i3 / Pentium^® / Celeron^® Processors (Socket 1150)
  - Digi Power Design
  - 12 Power Phase Design
  - Supports Intel^® Turbo Boost 2.0 Technology
  - Supports Intel^® K-Series unlocked CPU
  - Supports ASRock BCLK Full-range Overclocking
• Chipset
  - Intel^® Z87
• Memory
  - Dual Channel DDR3/DDR3L memory technology
  - 4 x DDR3/DDR3L DIMM slots
  - Supports DDR3/DDR3L 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
  - Max. capacity of system memory: 32GB*
  - Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2
  - Distortion-Free Slot



  *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  - 2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
  - Supports Secure Backup UEFI Technology
  - ACPI 1.1 Compliance Wake Up Events
  - SMBIOS 2.3.1 Support
  - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
• Graphics
  - Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 4400/4600
  - Pixel Shader 5.0, DirectX 11.1
  - Max. shared memory 512MB*
  - Dual VGA Output: support HDMI and DisplayPort ports by independent display controllers
  - Supports HDMI Technology with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
  - Supports DisplayPort with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
  - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
  - Supports HDCP function with HDMI and DisplayPort ports
  - Supports Full HD 1080p Blu-ray (BD) playback with HDMI and DisplayPort ports



  *The size of maximum shared memory may vary from different operating systems.

  **Intel^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  ***Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

  ****Intel^® InTru™ 3D is only supported under Windows^® 8 / 8 64-bit / 7 / 7 64-bit.
• Audio
  - 7.1 CH HD Audio
  - Creative Sound Core3D quad-core sound and voice processor
  - Supports SBX Pro Studio
  - Supports CrystalVoice
  - Supports Scout Mode
  - Supports EAX1.0 to EAX5.0
  - Premium Headset Amplifier (PHA)
• LAN
  - Gigabit LAN 10/100/1000 Mb/s
  - 1 x Giga PHY Intel^® I217V, 1 x GigaLAN Intel^® I211AT
  - Supports Intel^® Remote Wake Technology (on Intel^® I217V)
  - Supports Wake-On-LAN
  - Supports Dual LAN with Teaming
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots
  - 3 x PCI Express 3.0 x16 slots (PCIE2/PCIE3/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3); triple at x8 (PCIE2) / x4 (PCIE3) / x4 (PCIE4))
  - 1 x PCI Express 2.0 x1 slot
  - 1 x mini-PCI Express slot
  - 2 x PCI slots
  - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
  - Supports NVIDIA^® Quad SLI™ and SLI™
• Storage
  - 6 x SATA3 6.0 Gb/s connectors by Intel^® Z87, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 12 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug
  - 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug (SATA3_A4 connector is shared with the eSATA port)
  - 1 x eSATA connector by ASMedia ASM1061, supports NCQ, AHCI, Hot Plug and Port Multiplier
• Connector
  - 1 x IR header
  - 1 x COM Port header
  - 1 x Power LED header
  - 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
  - 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
  - 1 x Power Fan connector (3-pin)
  - 1 x 24 pin ATX power connector
  - 1 x 8 pin 12V power connector
  - 1 x SLI/XFire power connector
  - 1 x Front panel audio connector
  - 1 x SPDIF Out connector
  - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
  - 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports)
  - 1 x Dr. Debug with LED
  - 1 x Power Switch with LED
  - 1 x Reset Switch with LED

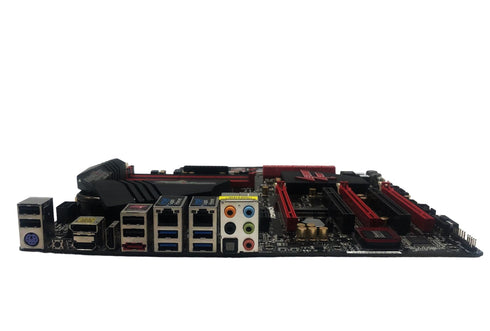

• Rear Panel I/O
  I/O Panel
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x HDMI-Out Port
  - 1 x HDMI-In Port
  - 1 x DisplayPort
  - 1 x Optical SPDIF Out Port
  - 1 x eSATA Connector
  - 3 x USB 2.0 Ports
  - 1 x Fatal1ty Mouse Port (USB 2.0)
  - 4 x USB 3.1 Gen1 Ports (ASMedia Hub)
  - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  - 1 x Clear CMOS Switch
  - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• Unique Feature
  - ASRock F-Stream
  - ASRock APP Shop
  - ASRock Instant Flash
  - ASRock APP Charger
  - ASRock XFast USB
  - ASRock XFast LAN
  - ASRock XFast RAM
  - ASRock Crashless BIOS
  - ASRock OMG (Online Management Guard)
  - ASRock Internet Flash
  - ASRock UEFI System Browser
  - ASRock UEFI Tech Service
  - ASRock Dehumidifier
  - ASRock Easy RAID Installer
  - ASRock Easy Driver Installer
  - ASRock Interactive UEFI
  - ASRock Fast Boot
  - ASRock Restart to UEFI
  - ASRock USB Key
  - ASRock Key Master
  - ASRock Home Cloud
  - ASRock FAN-Tastic Tuning
  - Hybrid Booster:
  - CPU Frequency Stepless Control
  - ASRock U-COP
  - Boot Failure Guard (B.F.G.)
  - Good Night LED
• Support CD
  - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial), MeshCentral, Splashtop Streamer, XSplit
• Accessories
  - 1 x ASRock SLI_Bridge_2S Card
  - Quick Installation Guide, Support CD, I/O Shield
  - 8 x SATA Data Cables
  - 2 x SATA 1 to 1 Power Cables
  - 1 x Front USB 3.0 Panel with 2.5" HDD/SSD Rack
  - 4 x HDD Screws
  - 6 x Chassis Screws
  - 1 x Rear USB 3.1 Gen1 Bracket
  - 1 x WiFi Module Screw
• Hardware Monitor
  - CPU, Chassis temperature sensing
  - CPU, Chassis, Power Fan Tachometer
  - CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
  - CPU, Chassis Fan multi-speed control
  - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor
  - ATX Form Factor
  - Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)
• OS
  - Microsoft^® Windows^® 10 64-bit / 8 / 8 64-bit / 7 / 7 64-bit compliant
• Certifications
  - FCC, CE
  - ErP/EuP Ready (ErP/EuP ready power supply is required)

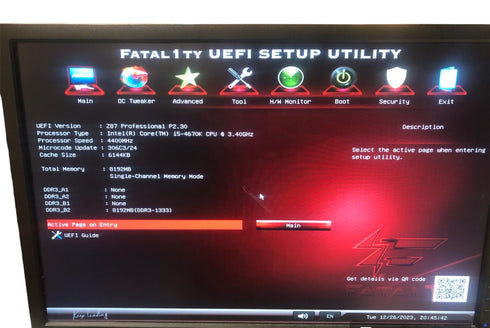

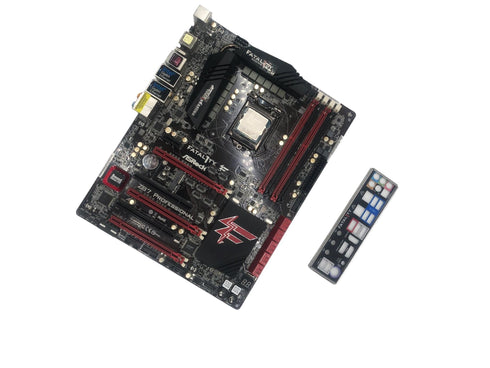

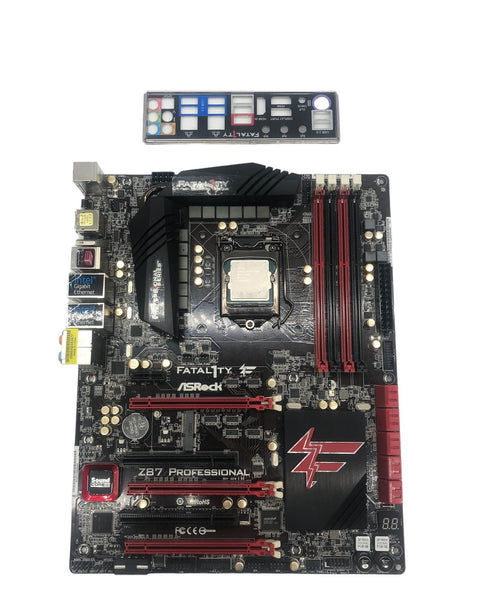

Vad som syns i bild är vad som medföljer
